XPC Racing Connecting Rod Bearings Honda B18C1 B18C5 F18C Coated with Dowel Holes - CR4287XPDC

In stock
(Only %1 left)
As low as $86.20
XPC Series is King Bearings‘ premium race bearings, featuring the pMaxBlack™ overlay that increases hardness and topped by the innovative pMaxKote™ ceramic nano-composite polymer coating, that enhances wear & seizure resistance without altering the bearing's original wall thickness dimensions.
Commonly use for circle track, drag racing, off-shore, and other applications that utilize steel crankshafts. Features ceramic nano-composite polymer coating, that enhances wear & seizure resistance without altering the bearing's original wall thickness
Crankshaft Dim. Housing Dim. Length Thickness
45.00 / 44.98 mm
1.7717 / 1.7707 inch
48.02 / 48.00 mm
1.8906 / 1.8898 inch
17.5 mm
0.689 inch
1.502 mm
0.0591 inch
Bearings contain holes for dowel pins

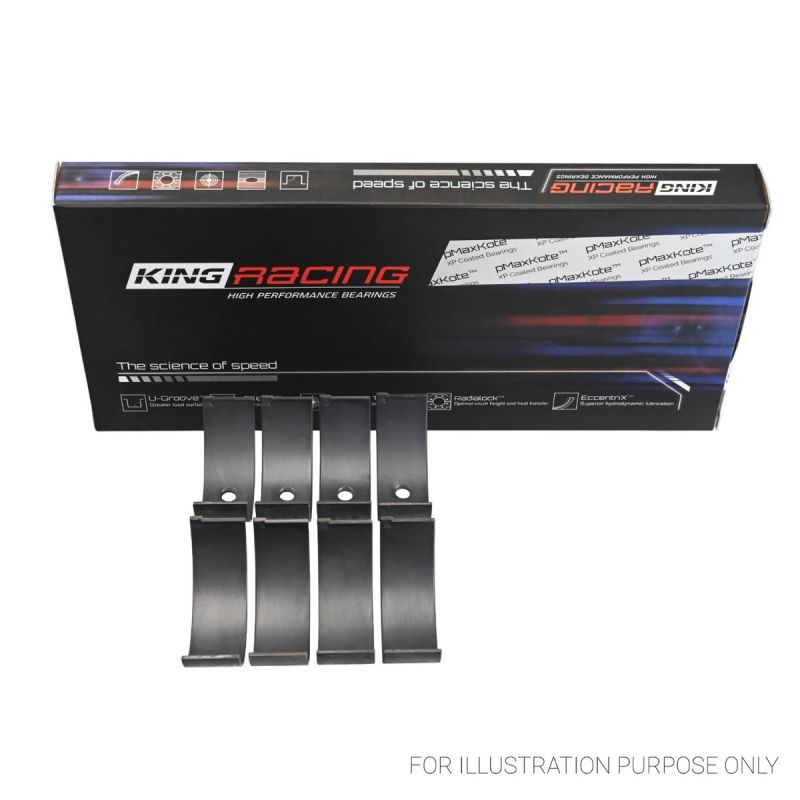

Connecting Rod Bearing Set For HONDA B18C1, B18C5, 16V - CR4287XPDC

Tech Features

Copper Based
Copper Based
Tri-Metal Copper based material

Leaded or Lead Free tri layers bearings for low to heavy load engines.

pMaxBlack™
pMaxBlack
Superior load capacity

Overlay features proprietary nano-scaled hardening process producing superior load capacity.

pMaxKote™
pMaxKote
Factory applied polymer coating

Inhouse developed Polymer coating for race applications, enhances seizure & wear resistance, with no added thickness.

Dowel Hole
Additional Stability for the Shell

Enables adding a locating pin, thus improving bearing stability particularly in aluminum housing, that may be compromised by excessive housing expansion and loosing bearing press fit, that occurs in extreme heat conditions.

Radialock™
Radialock
Optimal crush height and heat transfer

An optimal crush height value obtained from an optimization process of each performance bearing crush height

Eccentrix™
Eccentrix
Superior hydrodynamic lubrication

An optimized eccentricity value reached through elasto-hydrodynamic analysis and dynamic calculations.

Bulls Eye™
Bull's Eye Tolerance
PERFECT CLEARANCE IN EVERY SET

Outperforms the industry’s wall thickness tolerance, ensuring the least thickness variation shell-to-shell.
